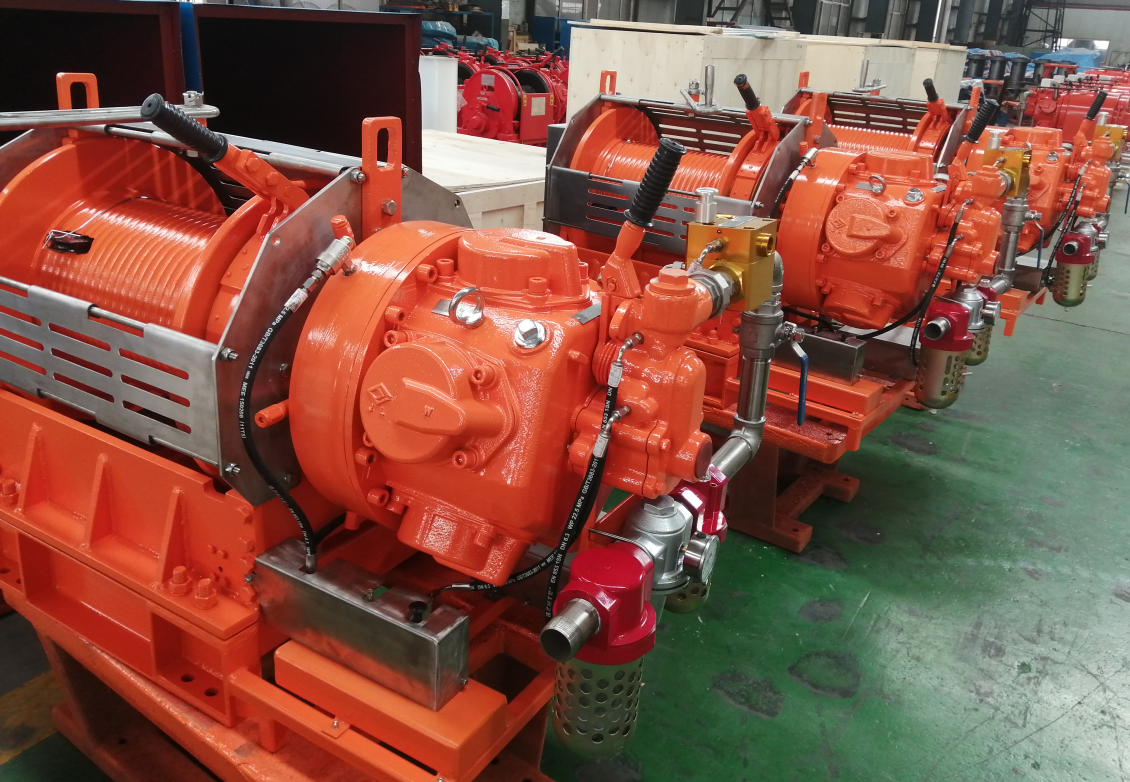

New Version Manned Pneumatic Winch ZJQH-15×20B Personnel And Material Lifting

INTRODUCTION

ZJQH-15×20B Manned Pheumatic Winch with enhanced technical clarity and stylistic improvements:

The innovative pneumatic winch represents a significant evolution from conventional lifting systems, integrating advanced safety mechanisms with versatile operational capabilities. This reengineered apparatus incorporates a multi-layered protection system including an emergency stop function for immediate response, overload sensors that prevent strain beyond rated capacity, and precision limit switches ensuring optimal travel range control. Its compressed air power source eliminates electrical hazards while maintaining robust performance in demanding environments ranging from marine operations to industrial manufacturing.

What distinguishes this machinery is its adaptive modular design, allowing swift configuration changes for diverse applications such as material handling in construction sites, load positioning in mining operations, and specialized lifting tasks in confined spaces. The corrosion-resistant aluminum housing combined with reinforced composite gears ensures durability under continuous operation. Operational efficiency is further enhanced through ergonomic controls and a vibration-dampened grip system, making it particularly suitable for extended-use scenarios. Having undergone rigorous ISO-certified testing protocols, this multi-functional solution has earned widespread acclaim across industries for its reliability-to-weight ratio and maintenance-friendly architecture. User feedback consistently highlights its superior performance-to-cost ratio compared to traditional hydraulic and electric counterparts, solidifying its position as a preferred choice for professional lifting applications.

MAIN PARAMETERS

Rated lifting force:Payload 30kN, manned 15kN
Lifting speed :~20m/min;
Steel rope diameter(mm):φ19mm
Wire capacity (D=10mm):130m
Pneumatic Motor
Rated power(kW):16kw
Pressure of compress air(MPa):0.6-0.8MPa
Ax. air consumption:≤18.3m3/min
Break type:Built-in entire disc CAAB + Band hand break
Weight(kg):800KG
Security measures:
Ergency stop device；
Barely able to brake.
Mergency Lowering；
Over load protection device；
Limit protection Switches

Taian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.

According to market demand, the company continues to carry out research and development and application promotion of new products:

Pneumatic winch (0.5 ton-30 tons), logging winch (2000 to 12000 meters), rewinding machine (5 tons to 40 tons), pneumatic winch (0.2 tons to 30 tons), manned pneumatic winch (150kg to 5000kg), electric winch (0.5 tons to 30 tons), electric manned winch (150kg to 5000kg),hydraulic Winch (0.5 tons to 25 tons), pneumatic hoist (0.1t-100t) and other varieties, according to user needs can also be developed skid cable winch, vehicle winch, winch rewind, generator set and other products;

TAJL Products are widely used in oil, natural gas, coal, metal and other mining exploration and development and Marine exploration, shipbuilding and other industries, only pneumatic machinery products have more than a dozen series, more than 100 varieties, exported to the Middle East, South America, Africa, India, Singapore and other 20 countries and regions, similar products in the domestic market share of more than 80%, It is currently the largest professional R & D manufacturer of pneumatic winch in China.

TAJL attaches great importance to the construction of quality system and scientific and technological innovation, and has passed ISO9001: 2008 Quality management system certification, API certification from the American Petroleum Institute, MA(KA) certification for mining products, product type approval from China Classification Society (CCS), ABS certification, DNV certification.

The company always adheres to the tenet of "scientific and technological innovation, quality first, customer satisfaction, and continuous improvement", constantly improves and improves product performance, further improves product quality, and researches and develops new products with more applicability, excellent functions, and high quality. Provide users with Better products and services.

We will continue to increase investment in technological innovation and continue to purchase advanced processing and testing equipment. Inject new vitality and lay a solid foundation for the long-term, stable and rapid development of the company.
