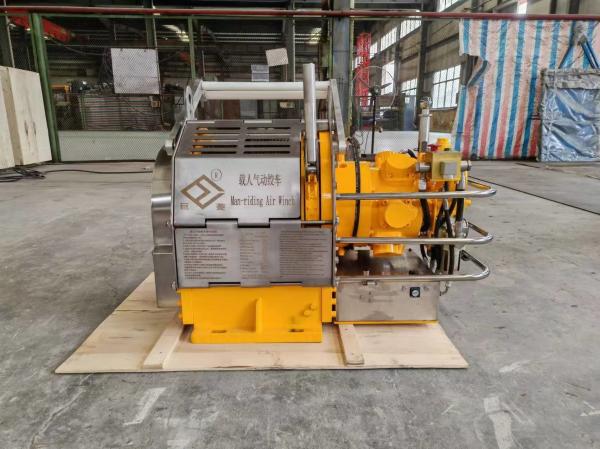

Man Ride Nneumatic Winch ZJQH-1.5×30B Lifting Apparatus Powered By Compressed Air Motor

INTRODUCTION

The Juling Manrider Air Winch is a pneumatically-driven lifting apparatus powered by a compressed air motor, utilizing an integrated planetary gear reduction system to transmit torque to its drum for hoisting or pulling operations. Designed for onshore and offshore petroleum applications, this dual-purpose equipment accommodates both personnel transfer and material handling tasks with distinct safety margins. It features an 8:1 safety factor for manned operations and a 5:1 safety ratio for cargo lifting, ensuring operational integrity under varying load conditions. The system incorporates an optimized 18:1 minimum drum-to-cable diameter ratio, engineered to minimize wire rope degradation through reduced bending stress and surface abrasion. Particularly suited for hazardous environments where spark-resistant solutions are mandated, its pneumatic drive mechanism eliminates ignition risks while maintaining robust performance. The planetary gear configuration ensures compact dimensions without compromising torque output, making it adaptable for confined workspaces in oil rigs or marine platforms. This specialized winch combines ergonomic design with critical safety parameters to meet stringent industry standards for vertical transportation in energy sector operations.

MAIN PARAMETERS

FUNCTIONS

1. The winch adopts the drum double support structure, the rope end fixed form is safe and reliable;

2. The winch deceleration system adopts (roller) built-in planetary deceleration mechanism;

3. The brake system of the winch adopts two kinds of brake forms: internal full stop brake and external handbrake brake. Sealed automatic full disc brake, resistant to salt spray, dust or moisture erosion, manual roller mounted belt brake, the operator can brake;

4. The winch can realize two control forms, local operation and remote control operation. Both control forms must have multiple safety protection measures such as loose rope protection, overload protection, limit protection, emergency stop protection, air brake and safe release

Taian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.

According to market demand, the company continues to carry out research and development and application promotion of new products:

Pneumatic winch (0.5 ton-30 tons), logging winch (2000 to 12000 meters), rewinding machine (5 tons to 40 tons), pneumatic winch (0.2 tons to 30 tons), manned pneumatic winch (150kg to 5000kg), electric winch (0.5 tons to 30 tons), electric manned winch (150kg to 5000kg),hydraulic Winch (0.5 tons to 25 tons), pneumatic hoist (0.1t-100t) and other varieties, according to user needs can also be developed skid cable winch, vehicle winch, winch rewind, generator set and other products;

TAJL Products are widely used in oil, natural gas, coal, metal and other mining exploration and development and Marine exploration, shipbuilding and other industries, only pneumatic machinery products have more than a dozen series, more than 100 varieties, exported to the Middle East, South America, Africa, India, Singapore and other 20 countries and regions, similar products in the domestic market share of more than 80%, It is currently the largest professional R & D manufacturer of pneumatic winch in China.

TAJL attaches great importance to the construction of quality system and scientific and technological innovation, and has passed ISO9001: 2008 Quality management system certification, API certification from the American Petroleum Institute, MA(KA) certification for mining products, product type approval from China Classification Society (CCS), ABS certification, DNV certification.

The company always adheres to the tenet of "scientific and technological innovation, quality first, customer satisfaction, and continuous improvement", constantly improves and improves product performance, further improves product quality, and researches and develops new products with more applicability, excellent functions, and high quality. Provide users with Better products and services.

We will continue to increase investment in technological innovation and continue to purchase advanced processing and testing equipment. Inject new vitality and lay a solid foundation for the long-term, stable and rapid development of the company.
