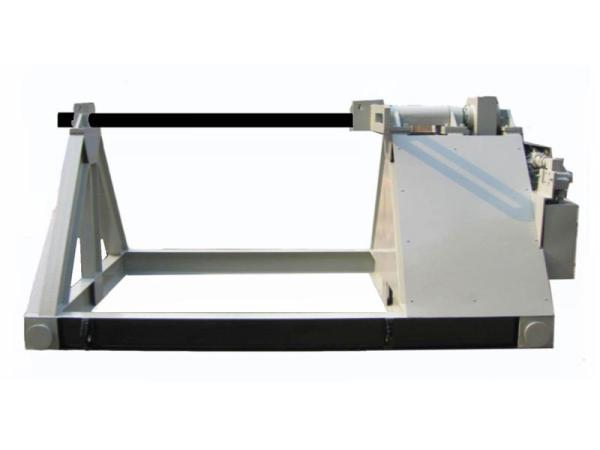

Pneumatic Rope Rewinding Machine Side Rope Reel Or Coaxial Rope Reel

PRODUCTION

DSJ series Pneumatic Rope Rewinding Machine is designed for efficiently coiling and deploying wire ropes in oilfield drilling operations. By neatly winding ropes after re-closing, it simplifies relocation and reuse while preventing tangling, twisting, and abrasion, significantly extending rope service life. The system mechanizes rope handling, reducing manual labor and enhancing operational safety. It also supports large-scale cable management during deployment and retrieval.

The spooler offers flexible power configurations:
- **Hydraulic/pneumatic drives**: Enable stepless speed control for precise adjustments.
- **Electric drives**: Available in fixed-speed or variable-speed models.

Customizable by tonnage, torque, and structural design, it can integrate a lead drum upon request to optimize rope alignment. Adaptable to diverse operational demands, the DSJ series ensures reliability in harsh drilling environments, combining durability with user-centric innovation.

NUMBERING METHOD

① Rope drum marking :S- coaxial rope reel; C- side rope reel; without drag rope roller without sign.

② Power type: Y- hydraulic type; D- electric type; T- electric speed regulation; Q- pneumatic type.

③ Maximum Speed Of Revolution: r/min.

④ Maximum Load Weight:*1000kg.

⑤ Main Drum Rope Diameter (generally not marked).

⑥ Rope Capstan Machine.

TECHNICAL PARAMETER
