JQHS-5×48 Pneumatic Winch(Automatic Drum Band Brake)

INTRODUCTION OF JQH SERIES AIR WINCH

JQHS series air winch is a winch device which is powered by air motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth running, stepless speed change and so on. As an explosion-proof traction, lifting power device, especially suitable for oil fields (including Marine), geological drilling, mining and explosive, flammable gas and other places.

Operation mode classification: local control, remote control,local contro＋remote control;

The winch can be equipped with safety protection functions: automatic braking, automatic rope arrangement device, emergency stop protection device, overload protection device, emergency release device, etc.

Brake type: manual belt brake + automatic disc brake

The 0.5 ton aluminum winch is light in weight, small in size and easy to install.

TECHNICAL PARAMETERS

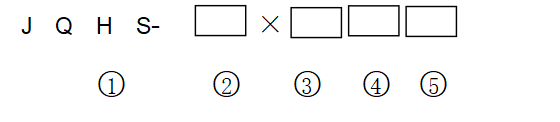

○1 JQHS:Double support piston type pneumatic winch

○2 max lifting force in first layer:kN

○3 max speed: m/min

○4 Brake:X-hand brake ,disc brake；Z-hand brake,auto brake；S-hand brake ,foot brake；

○5 Variant product serial number:A,B,C etc.

Taian Juling Drilling Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacture of pneumatic machinery. It has more than 30 years of experience in pneumatic machinery research and development and manufacturing. It is a professional manufacturer of pneumatic winches.

According to market demand, the company continues to carry out research and development and application promotion of new products:

Pneumatic winch (0.5 ton-30 tons), logging winch (2000 to 12000 meters), rewinding machine (5 tons to 40 tons), pneumatic winch (0.2 tons to 30 tons), manned pneumatic winch (150kg to 5000kg), electric winch (0.5 tons to 30 tons), electric manned winch (150kg to 5000kg),hydraulic Winch (0.5 tons to 25 tons), pneumatic hoist (0.1t-100t) and other varieties, according to user needs can also be developed skid cable winch, vehicle winch, winch rewind, generator set and other products;

TAJL Products are widely used in oil, natural gas, coal, metal and other mining exploration and development and Marine exploration, shipbuilding and other industries, only pneumatic machinery products have more than a dozen series, more than 100 varieties, exported to the Middle East, South America, Africa, India, Singapore and other 20 countries and regions, similar products in the domestic market share of more than 80%, It is currently the largest professional R & D manufacturer of pneumatic winch in China.

TAJL attaches great importance to the construction of quality system and scientific and technological innovation, and has passed ISO9001: 2008 Quality management system certification, API certification from the American Petroleum Institute, MA(KA) certification for mining products, product type approval from China Classification Society (CCS), ABS certification, DNV certification.

The company always adheres to the tenet of "scientific and technological innovation, quality first, customer satisfaction, and continuous improvement", constantly improves and improves product performance, further improves product quality, and researches and develops new products with more applicability, excellent functions, and high quality. Provide users with Better products and services.

We will continue to increase investment in technological innovation and continue to purchase advanced processing and testing equipment. Inject new vitality and lay a solid foundation for the long-term, stable and rapid development of the company.
