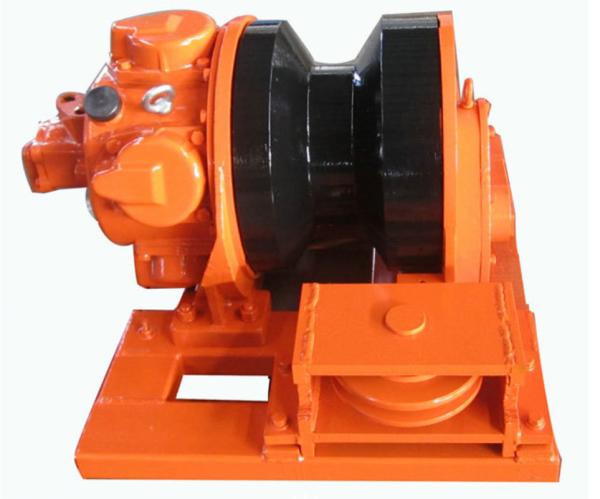

    Hand Brake And Auto Brake Air Winch Corrosion Resistant JQHS-30×35T For Oilfield

    Ask Lasest Price
    Brand Name : Juling
    Model Number : As Specified in the data
    Certification : API,ISO
    Price : negotiable
    Payment Terms : T/T
    Delivery Time : Stock
    • Product Details
    • Company Profile

    Hand Brake And Auto Brake Air Winch Corrosion Resistant JQHS-30×35T For Oilfield

    JQHS-30×35T Air Winch Hand Brake And Auto Brake

    PRODUCTION


    JQHS series pneumatic winches (also known as XJFH series pneumatic winches due to the implementation of double-standard model writing method) are powered by piston air motors, and drive the reel through the reduction mechanism to realize the pneumatic support structure on the reel for heavy traction or lifting. Winch, the tension range of this series of pneumatic winches covers 10-150kN. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, stable operation, stepless speed change, etc. It is especially suitable for places with explosive and flammable gases such as oil fields, geological drilling, mining, and offshore platform operations.

    The built-in planetary transmission disc brake pneumatic winch is a new type of pneumatic winch developed for the special operation requirements of the marine environment. Its sealed transmission and braking structure and special coating process meet the reliability and corrosion resistance in harsh environments. Requirements: The winch's automatic rope discharge and discharge device is a rope discharge device designed to prevent the wire rope from being messy when the winch is unloaded. After continuous testing, verification and improvement, it has achieved a good rope discharge effect and has been widely used. It is favored by users on the pneumatic winch for drilling in the range of 30-50kN, and is gradually being grafted and applied to winches of other specifications.

    JQHS series pneumatic winches can be divided into common high seat, ordinary low seat, flange seat, trapezoidal buckle seat, straight thread buckle seat, lug plate seat, bent plate seat and other base types according to the structure of the base. And the combination can be divided into single brake (hand brake), double brake (hand brake + foot brake, hand brake + cylinder off brake, hand brake + disc brake off brake), three brakes (hand brake + foot brake + cylinder off brake). Users can choose according to actual operation needs.

    In addition, JQHS series pneumatic winches are also equipped with optional configurations such as buckle wire ropes, hooks, shackles, pendant chains, and gas treatment triples. Users can choose according to their own needs and selected winches.


    NUMBERING METHOUD



    1 JQHS:Double support piston type pneumatic winch

    2 ,max lifting force in first layer:kN

    3 ,max speed: m/min

    4 ,Brake:X-hand brake ,disc brake;Z-hand brake,auto brake;S-hand brake ,foot brake

    5 ,Variant product serial number:A,B,C etc.

    PARAMETERS

    Item

    Specification

    Model

    JQHS-5*12

    JQHS-50*12X

    JQHS-50*20X

    JQHS-100*10X

    JQHS-150*6X

    Max. lifting force

    5kN

    50kN

    70kN

    100kN

    150kN

    Max.out layer lift force

    3kN

    30kN

    50kN

    70kN

    100kN

    Max. lifting speed

    12m/min

    12m/min

    20m/min

    10m/min

    6m/min

    Rated power

    2.6kw

    16kw

    16kw

    30kw

    30kw

    Air intake pressure

    0.8Mpa

    0.8Mpa

    0.8Mpa

    0.8Mpa

    0.8Mpa

    Rated air consumption

    3m3/min

    18.3m3/min

    18.3m3/min

    25.6m3/min

    25.6m3/min

    Wire capacity

    30

    120

    150m

    200m

    200m

    Diameter of wire

    8mm(8/25 in)

    20mm(3/4 in)

    20mm(3/4 in)

    24mm(15/16 in)

    24mm(15/16 in)

    Net weight

    550g

    700Kg

    1100Kg

    2100Kg

    2200Kg
